Safety marker/LM-G I-type
[Irradiation distance: 1 - 5m] LED positioning marker used in the crane operation! Best suited for productivity enhancement, labor-saving and for prevention of operation error and accidents!
Product Features
This is the industry-first small-sized positioning marker using high-brightness LED as a light source.
There are 4 types depending on the projector distance.
This product enables quick and accurate positioning of the crane, and improves efficiency of crane operation significantly. It helps to improve not only the operability but also the safety.
●Main advantages of implementation of this product
1. Improves safety of crane operators and prevents accidents such as tilted hanging.
2. Improves efficiency of crane operation.
3. Saves manpower on the ground.
Implementation Examples
Used for center indication for hoister attachment, length and dimension measurement for long objects, press die positioning, and coil height adjustment and positioning, etc.
| Irradiation distance | 1m - 5m |
|---|---|
| Irradiation mark | Standard: Cross, Mark color: Green *Bar, round, arrow, or point may be manufactured optionally as requested. |
| Contents | Marker (body), cable (5m), bracket (select either Type I or II) |
| Source voltage | AC single phase: 90 - 220V (±10％), 50/60Hz |
| Power consumption | Approx. 40W |
| Fuse | 250V 4A |
| Estimated life of lamp element | Approx. 40,000 hours (estimated) * This is not the product's life. |
| Use environment temperature | Minus 5℃ - 50℃ (with no freezing/no condensation) |
| Cable | VCTF1.25sq×3C |

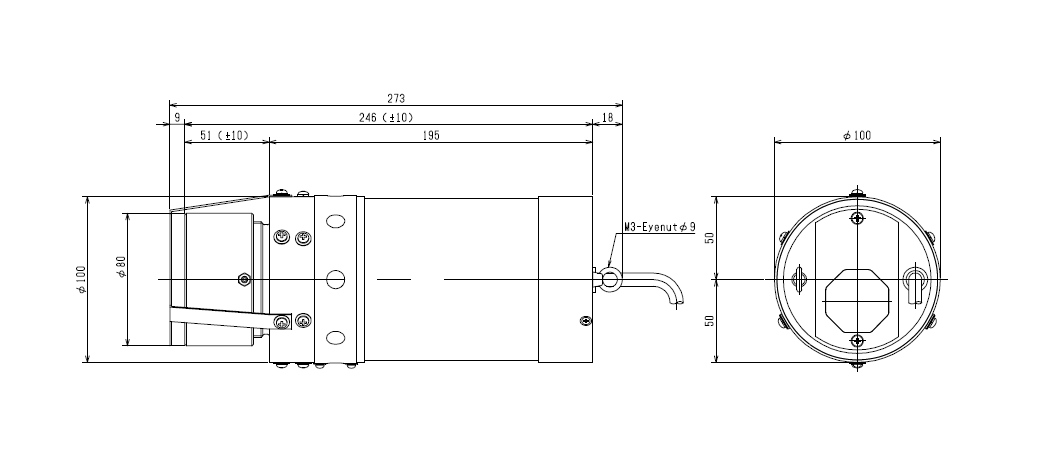

| Dimension | 250×100×100ｍｍ |
| Weight | Approx. 4.1kg |
