Crab center marker/CCM-S type
【Recommended：7m - 17m】This is a positioning marker for the crane operation! Perfect for labor saving and for prevention of operation errors and accidents!
Product Features
・This is the industry-first positioning marker that uses mercury lamp as a light source.
There are two types depending on projector distance.
・This product enables quick and accurate positioning of the crane, and improves efficiency of the crane operation significantly. It helps to improve not only the operability but also the safety.
・Main advantages of implementation of this product.
1. Improves safety of crane operators and prevents accidents such as tilted hanging.
2. Improves efficiency of crane operation.
3. Saves manpower on the ground.
Implementation Examples

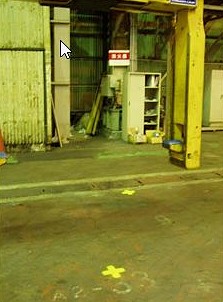

Used for positioning of ladle on the ladle crane in steel plants, coil conveyance in hot rolling mills, and positioning in coil warehouse, etc.
| Irradiation distance | Lifting range: 7m - 17m, Irradiation mark: Cross, Mark color: Lemon yellow |
|---|---|
| Irradiation mark | Cross, Mark color: Lemon yellow |

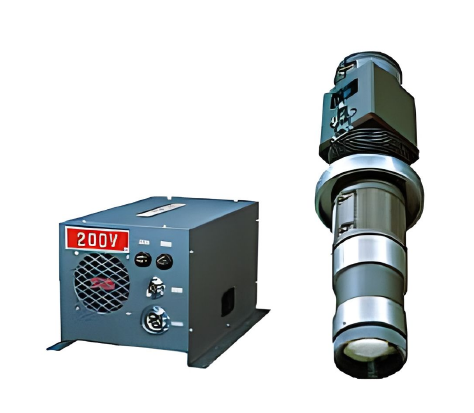

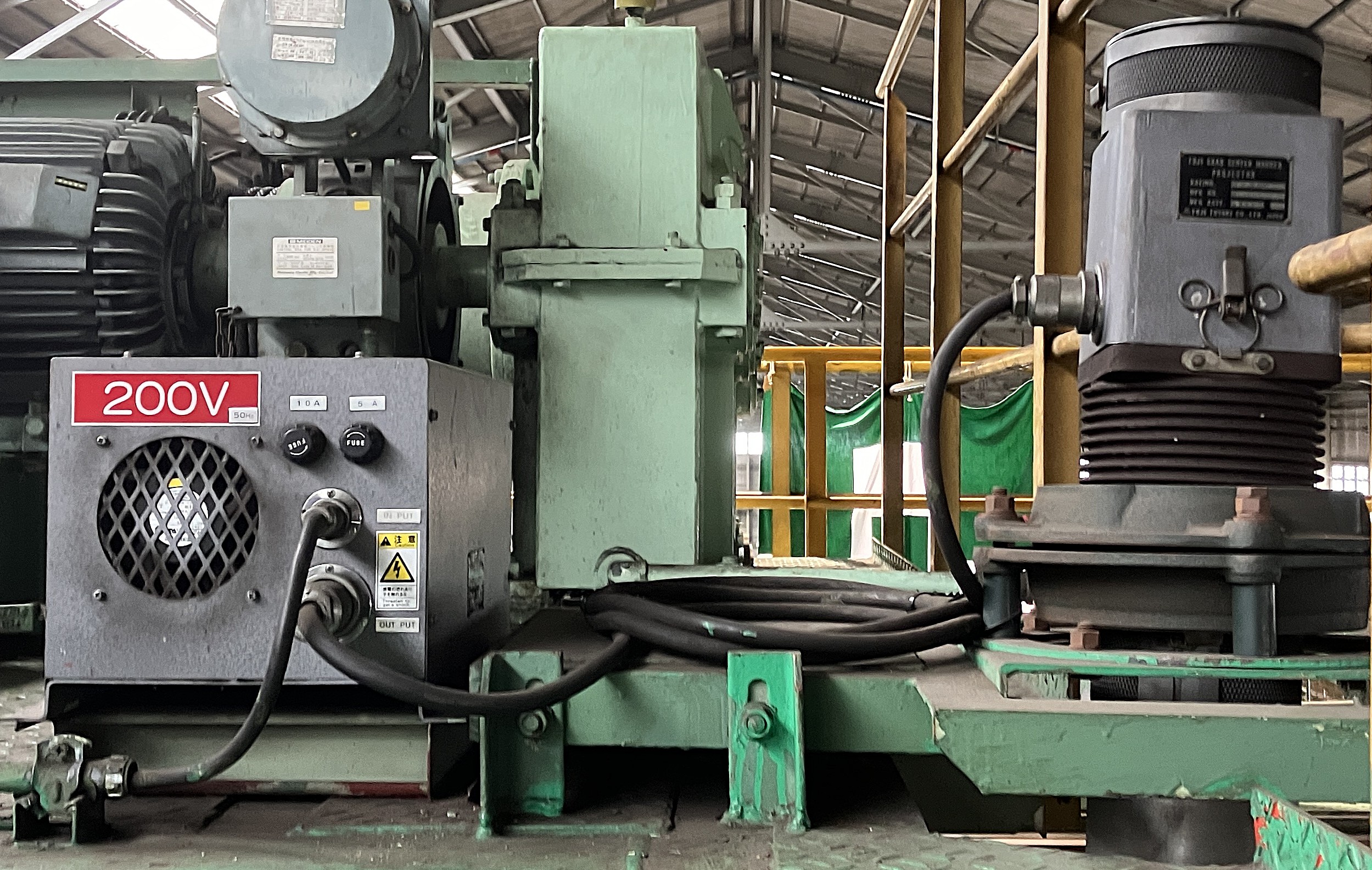

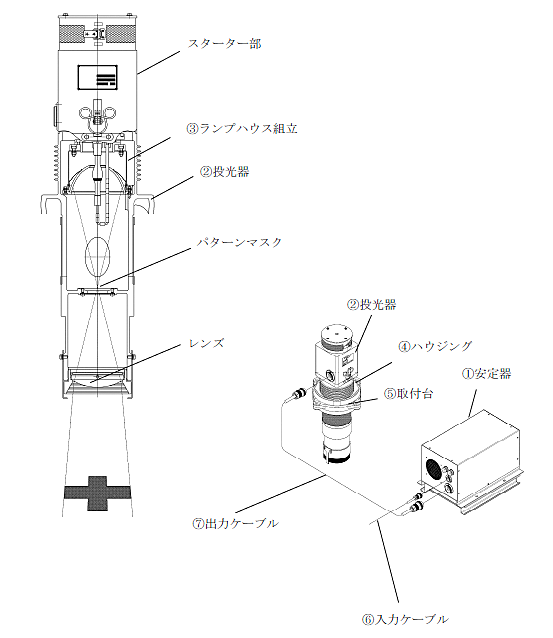

| Contents | Projector, stabilizer, lamp house, input cable, and output cable. |
| Operation power source | AC single phase 200/400V±20% 50/60HZ (fixed) |

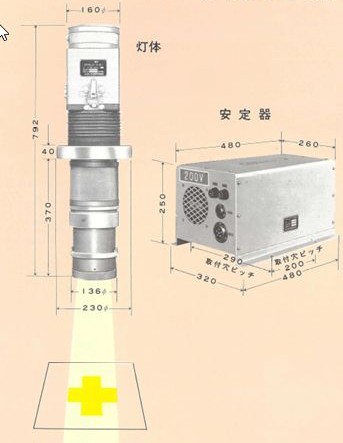

| Dimension | Main body: 780×330×330, Stabilizer: 450×320×310 |
| Weight | Main body: Approx. 26kg, Stabilizer: Approx. 38kg |
