Lubricator
×
![]()

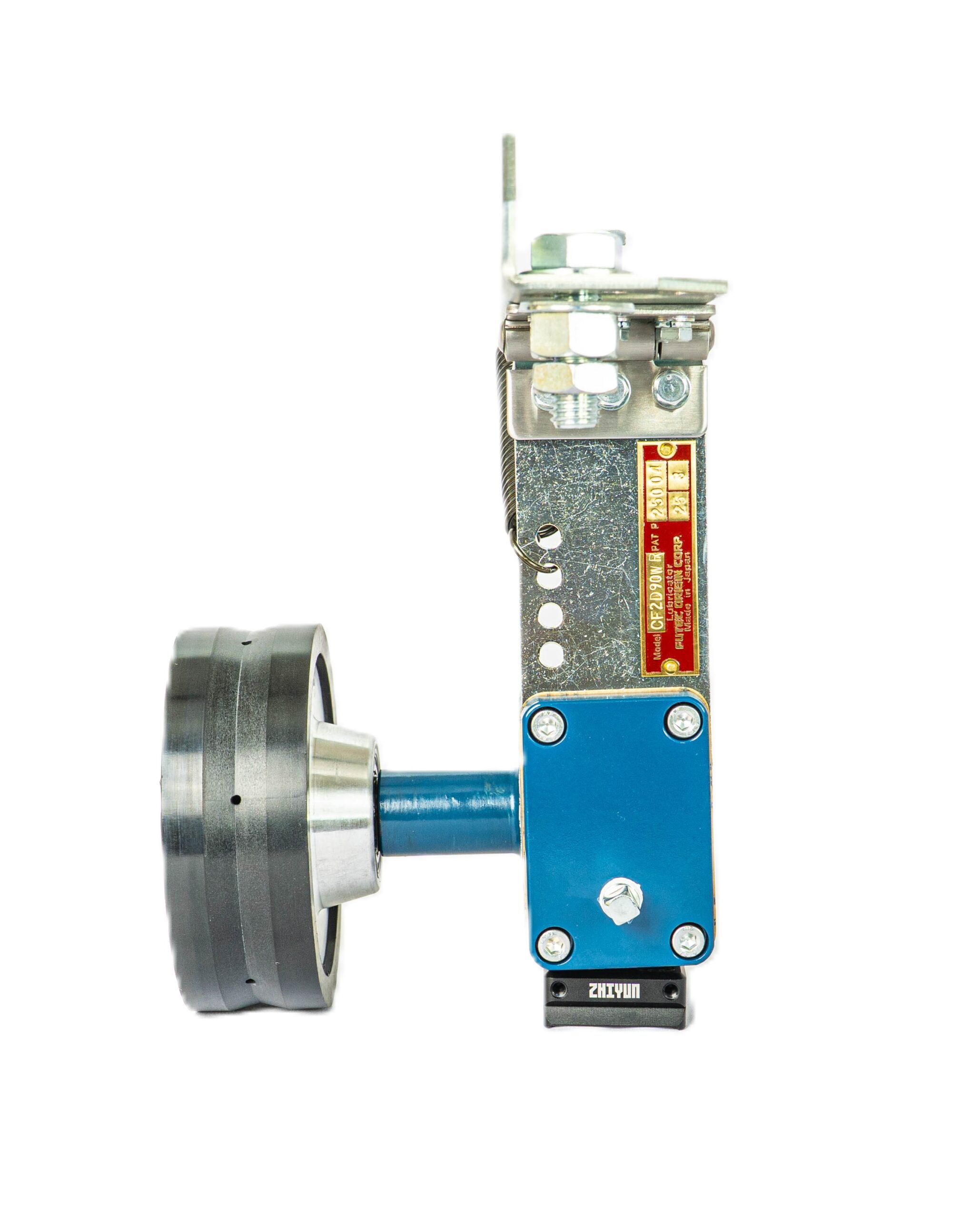

Chain lubricator/CF-2 Z90
A tiny amount of oil is applied to the chain link to prevent wear and extend the life of chain.
Product Features
・With the positive displacement pump that operates only when the chains are running, only a tiny amount of oil is discharged.
・The use of high-performance positive displacement micro pump prevents variations and unevenness due to changes in temperature and viscosity.
・It is compact and easy to install.
・The amount of discharge can be easily adjusted.
Implementation Examples
Used for storage conveyor at automobile plants
| Other specifications | There are two products with different oil discharge ("standard" 0.05cc and "special" 0.09cc per single nozzle shot). *Please contact us for further information about those two products. |
|---|---|
| The number of installation | One on each side (left and right) |
| Contents | Lubricator (body), oil tank (2L with T-joint) and hose (2000mm) x2 |

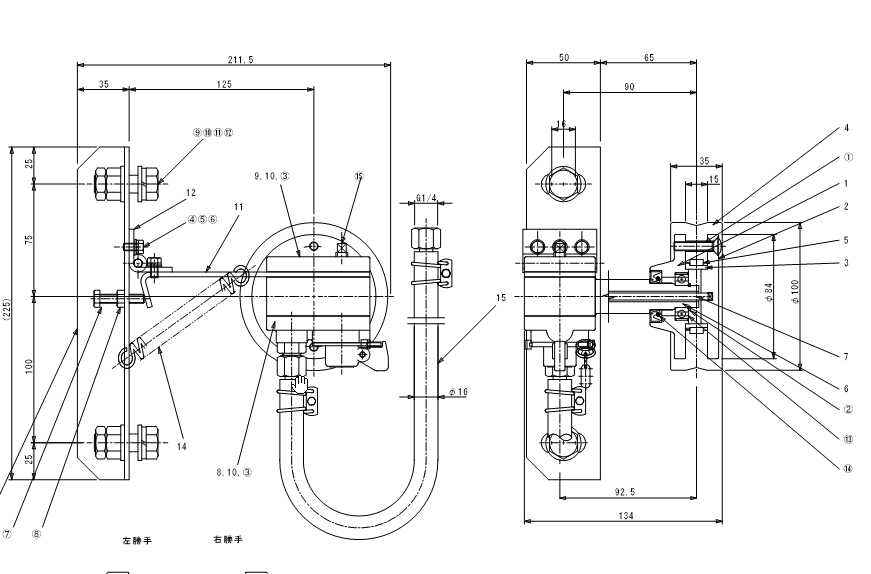

| Dimension | W212×D134×H225㎜ |
| Weight | Approx. 3kg |
