Lubricator
×
![]()

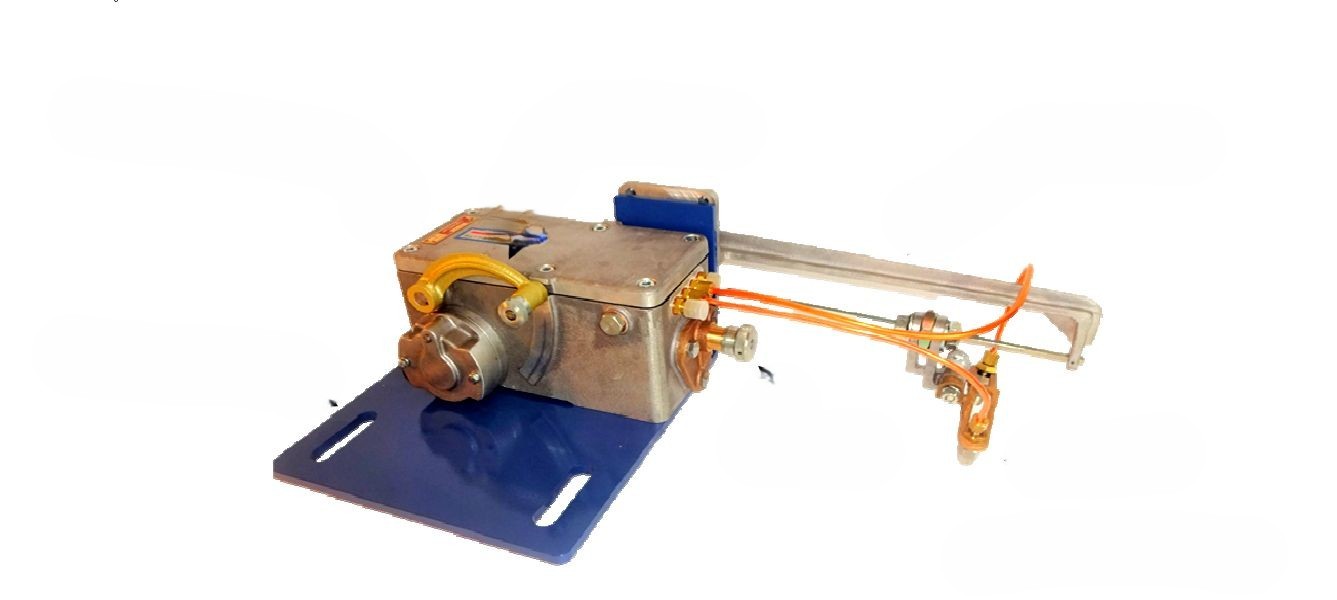

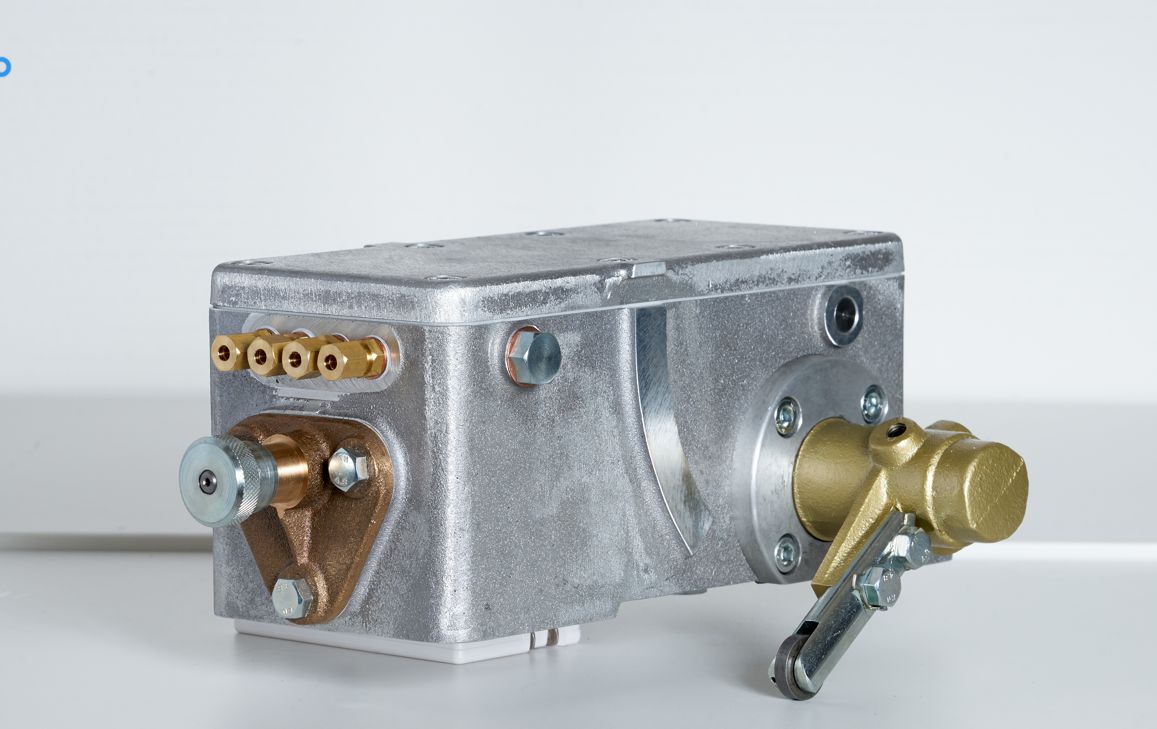

Chain automatic lubricator/CS-type
Oil is applied to the conveyor chain in a timely manner to extend the life of the chain. Installation is easy due to the mechanical structure.
Product Features
・The sliding portions between the pin and the bush as well as between the bush rollers can be lubricated properly.

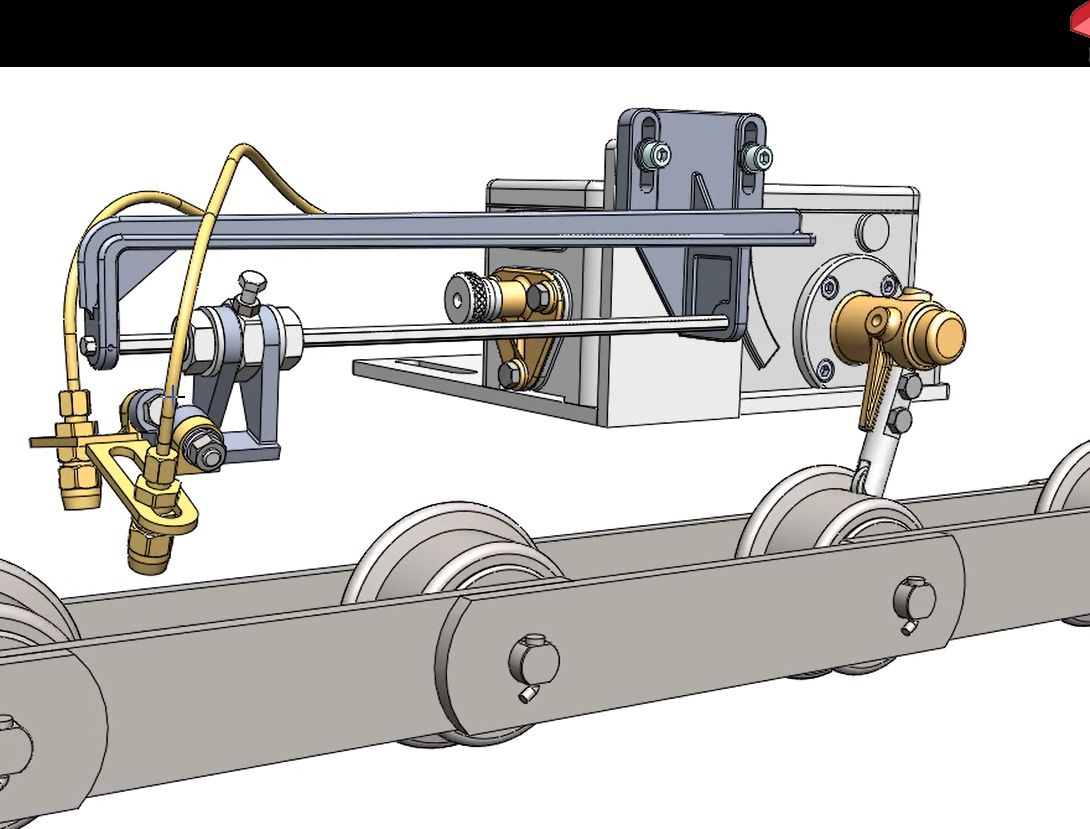

・It is powered by checker arm being flipped up by chain roller.
・Depending on the purpose, there is a choice between two types of discharge outlet; 2-outlet type (CS-12) and 4-outlet type (CS-14).
Implementation Examples
Used in: Garbage-disposal facilities (conveyor chain); Iron and steel plants (scrap conveyor chain, steel stock conveyor chain); Automobile manufacturers (assembly/paint conveyor chain), etc.
| Applicable chains | This lubricator is intended for the chains with roller pitch of 100mm or longer. |
|---|---|
| Oil discharge | Maximum oil discharge: 0.6cc-shot Minimum oil discharge: 0.08cc-shot |
| Specifications | A quotation shall be presented after a customer confirms the equipment specifications (for chain size, lubrication cycle, chain speed, pitch, etc.) on the specifications confirmation sheet. |
| Contents | Lubricator (body), hose (2000mm) and tank (5L or 20L) |
| Optional parts | Please choose either a nozzle fixing bracket or a nozzle holder. |
