Lubricator
×
![]()
Wire rope lubricator/RWF-type
The rope is directly lubricated at the drum position that helps to extend the life of rope.
Product Features

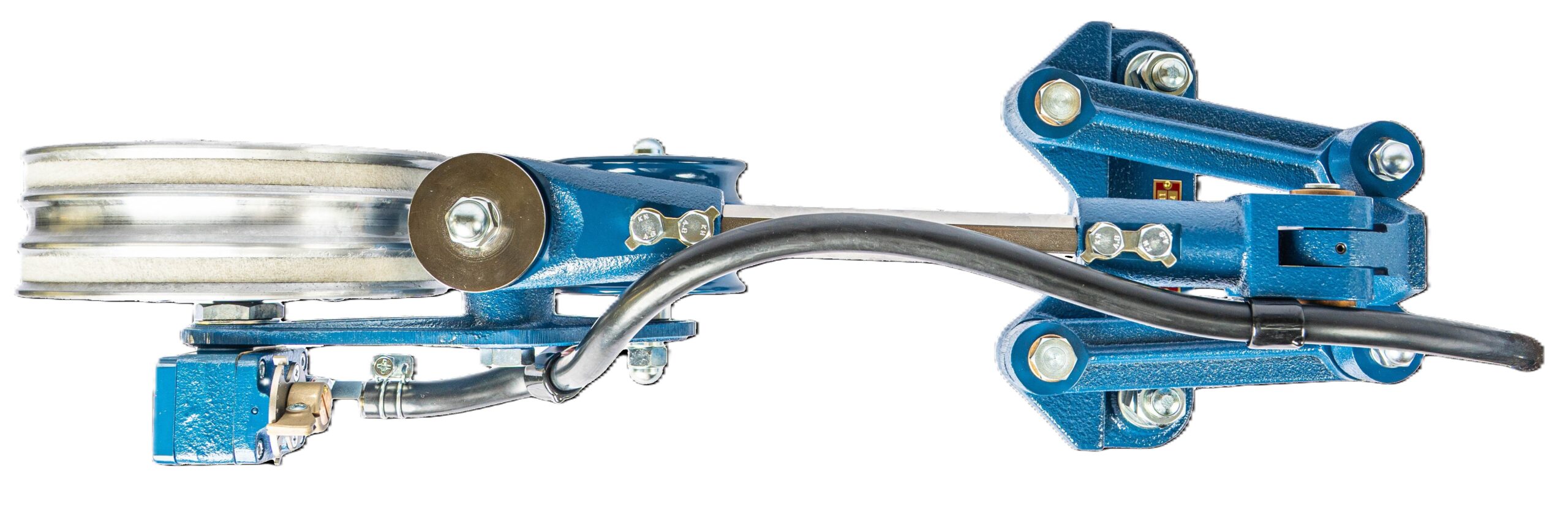

・This is an auto-lubricator that applies oil directly to the wire rope, wound on the hoisting drum.
・The lubricating wheel is mounted on the wire rope, wound on the drum to lubricate the rope while moving right and left in a drum axial direction according to the rolling up or down motion of the rope.
・The lubricating wheel delivers an excellent rope tracking performance.
Implementation Examples
Used for overhead traveling crane
| Contents | Lubricator (body), oil tank (5L), and hose (2000mm) x 1 |
|---|---|
| Type | There are three types of lubricator depending on the operating range. RWF-41: Applicable up to the rope winding width of 600ｍｍ RWF-42: Applicable up to the rope winding width of 800ｍｍ RWF-43: Applicable up to the rope winding width of 1000ｍｍ *Please specify the type, rope diameter, pitch and winding width. |

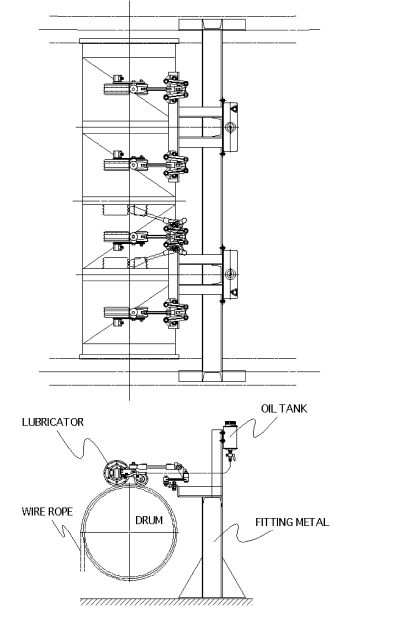

| Dimension | The dimension varies depending on the size of the lubricating wheel and the rod length. Please refer to the drawing. |
| Weight | The dimension varies depending on the size of the lubricating wheel and the rod length. Please refer to the drawing. |
